Air-water heat pumps

Sherpa [S2]

See specifics
Sherpa [S2]

Specifics

Product range

  • Internal unit code
  • External unit code
Sherpa S2 E 4
02040
02001

Sherpa S2 E 4

Up to 5.7 kW of power

Suspended internal unit, single-phase external unit

Sherpa S2 E 6
02040
02002

Sherpa S2 E 6

Up to 8.3 kW of power

Suspended internal unit, single-phase external unit

Sherpa S2 12
02041
02005

Sherpa S2 12

Up to 15.8 kW of power

Suspended internal unit, single-phase external unit

Sherpa S2 14
02041
02006

Sherpa S2 14

Up to 18.9 kW of power

Suspended internal unit, single-phase external unit

Sherpa S2 16
02041
02007

Sherpa S2 16

Up to 20.9 kW of power

Suspended internal unit, single-phase external unit

Sherpa S2 12T
02041
02008

Sherpa S2 12T

Up to 15.8 kW of power

Suspended internal unit, three-phase external unit

Sherpa S2 14T
02041
02009

Sherpa S2 14T

Up to 18.9 kW of power

Suspended internal unit, three-phase external unit

Sherpa S2 16T
02041
02010

Sherpa S2 16T

Up to 20.9 kW of power

Suspended internal unit, three-phase external unit

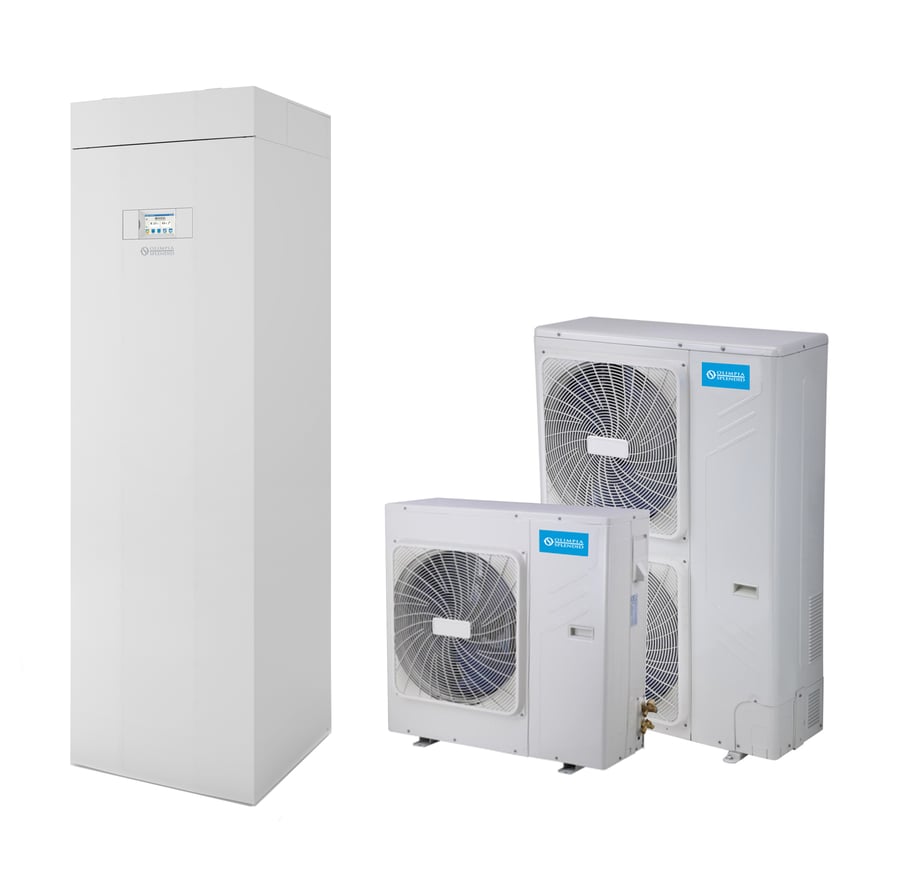

Sherpa Tower S2 E 4
02046
02001

Sherpa Tower S2 E 4

Up to 5.7 kW of power

Tower internal unit, single-phase external unit

Sherpa Tower S2 E 6
02046
02002

Sherpa Tower S2 E 6

Up to 8.3 kW of power

Tower internal unit, single-phase external unit

Documents

Schema d'impianto

Schemi impianto PDF e .dwg

Vista schematica

Vista Schematica PDF e DWG

Manuale

Installation, use and maintenance - Sherpa S2 big

Manuale

Installation, use and maintenance - Sherpa big outdoor unit

Manuale

Installation, use and maintenance - Sherpa small outdoor unit

Specifiche capitolato

Specifiche di capitolato

Manuale

Installation, use and maintenance - Sherpa S2 small

Catalogo prodotto

catalogo EN

Disegno dimensionale

Disegni dimensionali

Etichetta energetica

Etichetta Energetica

Certificato

CE Declaration

Dima d'installazione

DIMA
