Air-water heat pumps

Sherpa Monobloc [S2E]

Air-water heat pumps
Olimpia Splendid’s monobloc air-to-water heat pump with R32 refrigerant features a particularly compact design, enabling high capacities (up to 16 kW) with single-fan external units. The controls are..See specifics
Sherpa Monobloc [S2E]

Air-water heat pumps

Olimpia Splendid’s monobloc air-to-water heat pump with R32 refrigerant features a particularly compact design, enabling high capacities (up to 16 kW) with single-fan external units. The controls are state-of-the-art: remote touchscreen panel as standard and integrated Wi-Fi module for cloud management via the Comfort Home app. Through cascade management, units can be connected to each other (up to 6 units of the same size, with 1 master unit producing DHW) to reach up to 96 kW of system capacity.

Specifics

    Power (kW) 8.47, 9.56, 11.16, 13.42, 15.27, 18.23
    Type Monoblock
    Refrigerant R32
    Energy Class A+++

Certifications

Commands

Wall-mounted remote control (standard)

Comfort Home mobile application (Wi-Fi as standard)

External home automation system

SiOS Control home automation system

Highlights

Compact single-fan unit
Compact heat pump with a particularly small footprint: all power sizes have the same dimensions (in plan 104x42 cm) and a single fan unit (86 cm high), to facilitate its application in any renovation or new construction context.
Cascade management
Up to 6 units (of the same size) can be connected to make up a system with power up to 96 kW. The system consists of 1 master and 5 slaves, and only the master unit can produce domestic hot water.

Product range

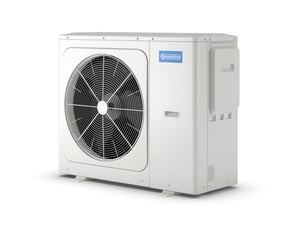

Sherpa Monobloc S2 E 6
02303

Sherpa Monobloc S2 E 6

Up to 8.5 kW of power

Single-phase

Sherpa Monobloc S2 E 8
02304

Sherpa Monobloc S2 E 8

Up to 9.6 kW of power

Single-phase

Sherpa Monobloc S2 E 10
02305

Sherpa Monobloc S2 E 10

Up to 11.2 kW of power

Single-phase

Sherpa Monobloc S2 E 12
02306

Sherpa Monobloc S2 E 12

Up to 13.4 kW of power

Single-phase

Sherpa Monobloc S2 E 14
02307

Sherpa Monobloc S2 E 14

Up to 15.3 kW of power

Single-phase

Sherpa Monobloc S2 E 16
02308

Sherpa Monobloc S2 E 16

Up to 18.2 kW of power

Single-phase

Sherpa Monobloc S2 E 12T
02309

Sherpa Monobloc S2 E 12T

Up to 13.4 kW of power

Three-phase

Sherpa Monobloc S2 E 14T
02310

Sherpa Monobloc S2 E 14T

Up to 15.3 kW of power

Three-phase

Sherpa Monobloc S2 E 16T
02311

Sherpa Monobloc S2 E 16T

Up to 18.2 kW of power

Three-phase
